MS-D-HU-010A

彗星Comet

产品概述

Product Overview

装载数字驱动电源后端，由驱动辅助源供电，标准 UART协议连接，监测工作状态，可检测驱动内的电 流电压，计算功率，温度 ，调光，开关。 支持eSIM 贴片卡，可直接与平台服务器通讯也可以通 过集中控制器通讯，内置超级电容断电运行时钟，平台失 联仍然可以执行亮灯策略，内置高精度调光芯片及顺滑 调 光 曲 线 渐 变 值 无 频 闪，杜 绝 忽 明 忽 暗 调 光。可 远 程 OTA升级以提升性能可靠性。

Mounted at the rear of digital driver power  supply and powered by auxiliary driver source. It  adopts standard UART communication to monitor  operating status, detect internal current, voltage,  calculate power and temperature, and realize  dimming & on-off control.  It supports SMD eSIM for direct cloud connec tion or communication via central controller.  - Built-in supercapacitor maintains real-time clock  after power failure to execute lighting plans  offline. High-precision dimming IC enables  smooth flicker-free dimming without abrupt  brightness change. Remote OTA upgrade is avail able for improved reliability.er-free smooth  - dimming. Remote OTA supported.

硬件参数

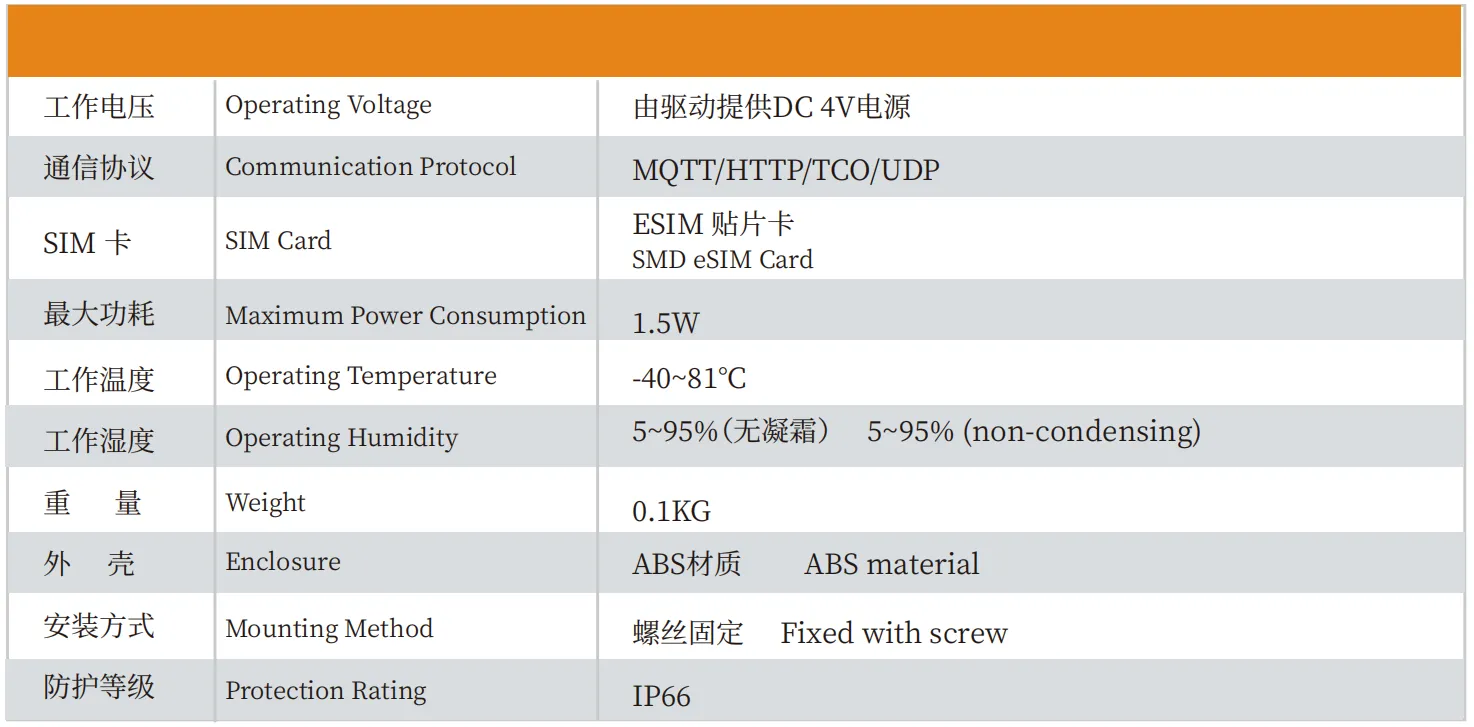

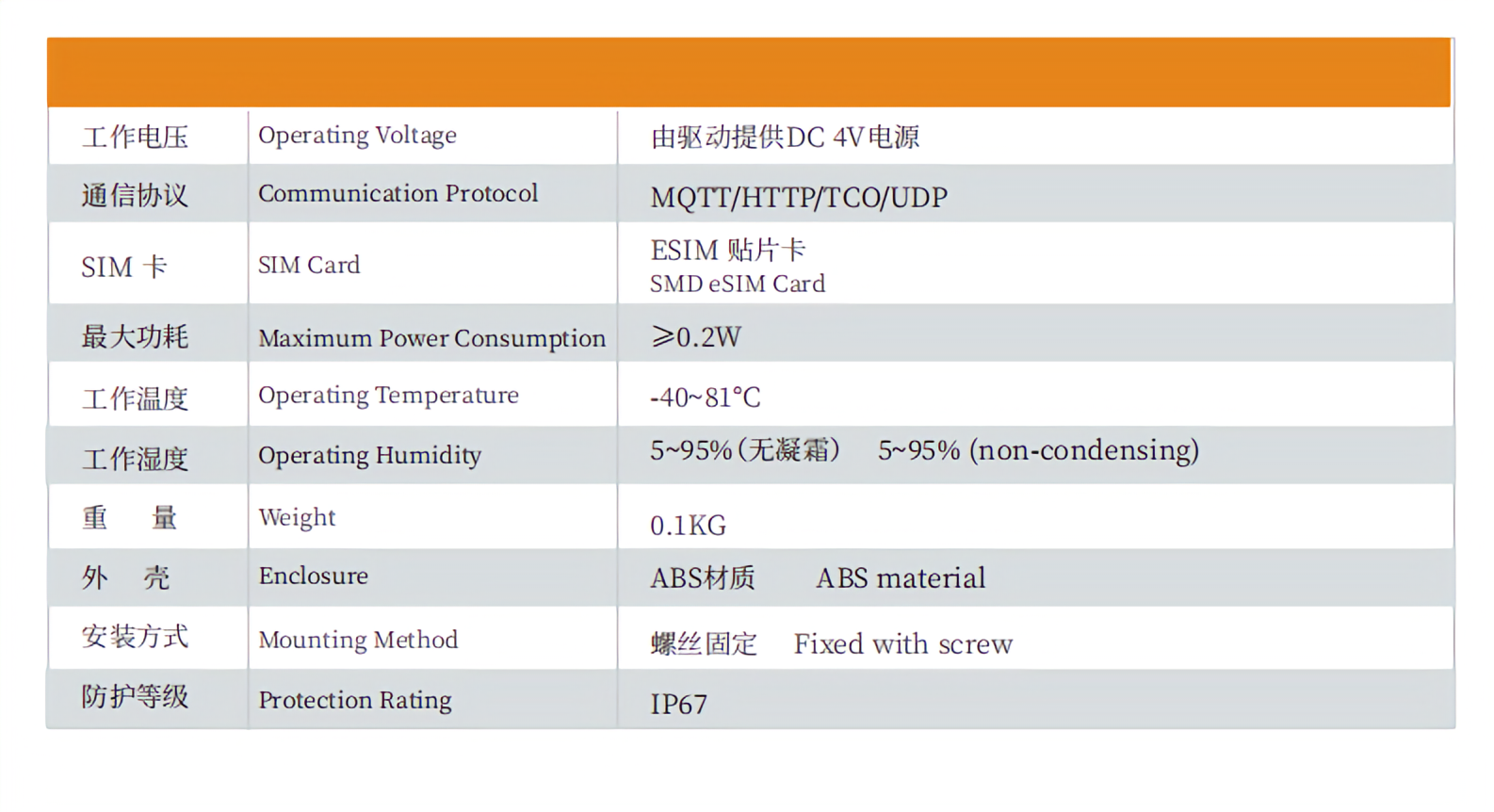

Hardware Parameters
