MS-J-BZ-010A
飞马座 Pegasus
产品概述
Product Overview
本产品是一种基于Cat.1网络通讯节点端，下辖的节点路灯控制器进行数据交换，开关、调光、亮灯策略等。内置三路电压电流检测， 路漏电检测，8路继电器可接六组交流接触器。2寸TFT显示屏五方向按键及设置维修开关便于维修维护。
设备有2个WAN口，1个USB口，2个RS485口，两个干接点，TF卡槽，一根CAT1天线和一根LORA/星闪天线。支持多种自定义协议，可接门禁水浸，RS485智能开关、智能电表、温湿度、照度、气象检测等。
This Cat.1 node communicates with subordinate lamp controllers for switching, dimming and schedule management.
It has 3-channel V/I monitoring, 8-channel leakage detection and 6 relays for AC contactors; a 2-inch TFT, 5-key panel and service switch simplify maintenance.
Ports: 2×WAN, 1×USB, 2×RS485, 2 dry contacts, TF slot, Cat.1 & LoRa/SparkLink antenna.With customizable protocols, it links access control, water leak detectors, meters and environmental sensors.

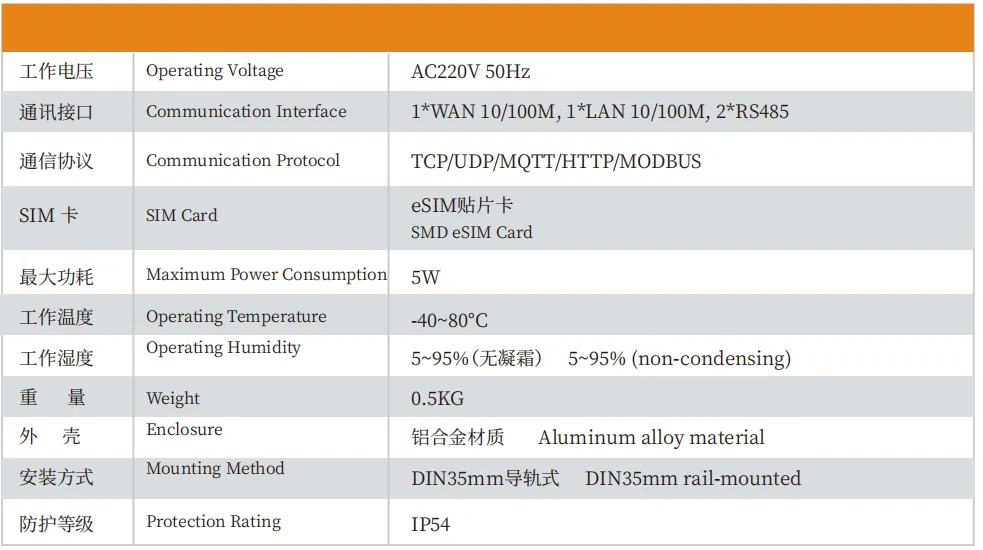

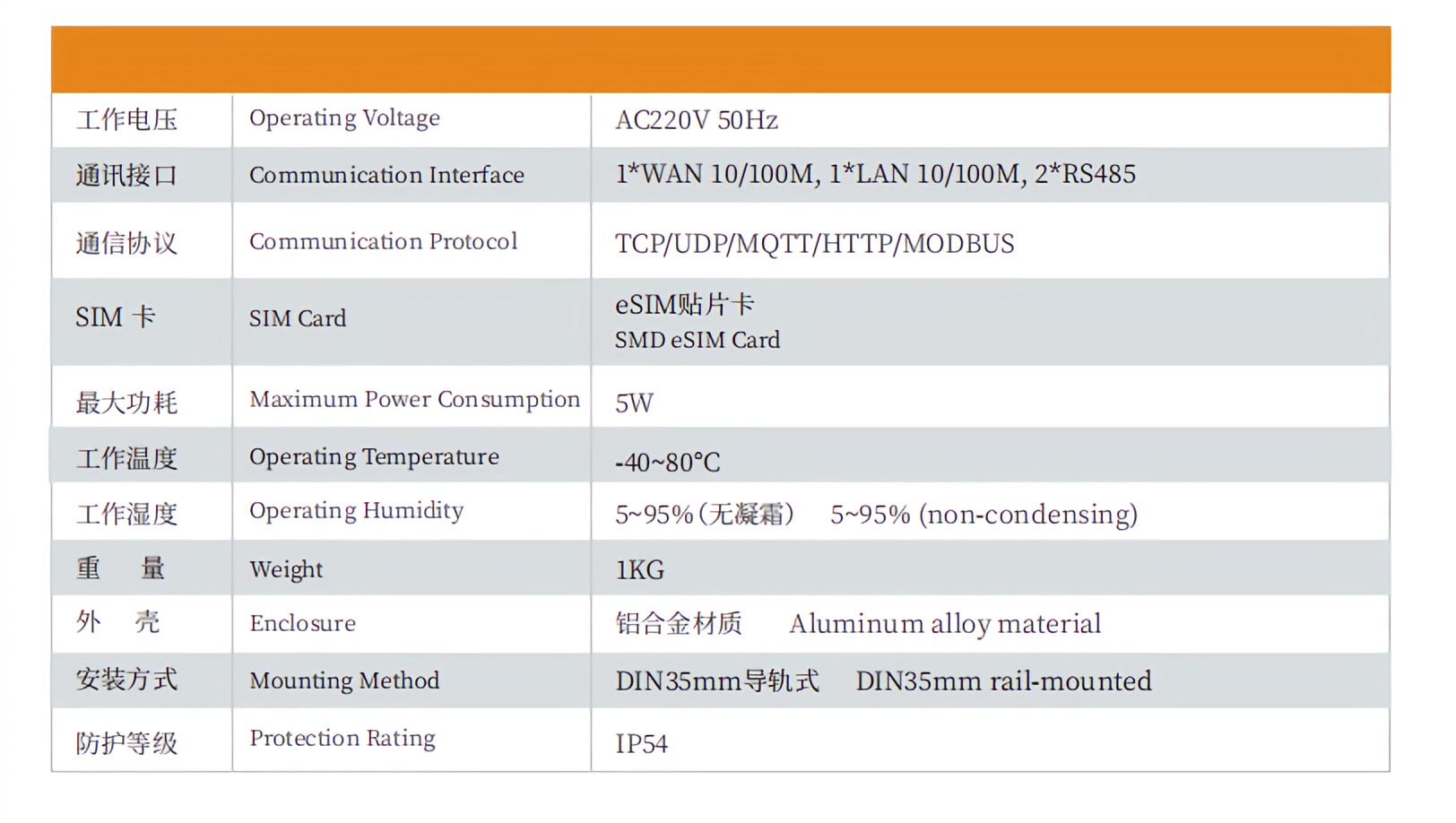

硬件参数
Hardware Parameters
