MS-FK-600A
轨道式分控Rail-Type Sub-Controller
产品概述
Product Overview
该产品是一款轨道式分控，双网口设计2寸TFT屏幕五方向按键操控更加灵活。8个端口输出每个端口可配置最大12X512输出最大速率达3M，每个端口对应域数量及域号都可更改，速率250K-3M可独立更改。通过网络配置软件或节点服务器可对灯具地址及参数进行更改。在标准DMX512应用中可对灯具RDM进行管理。可通过网络OTA升级。
This DIN-rail mounted sub-controller has dual Ethernet ports, a 2-inch TFT display and 5-way navigation keys for flexible operation.It has8 output ports, each configurable for up to 12×512channels with a maximum baud rate of 3M. Domain quantity, domain ID and individual baud rate (250K~3M) are adjustable per port.Lamp addresses and parameters can be edited via network software or node server; RDM management is supported under standard DMX512. Network OTA firmware upgrade is available.

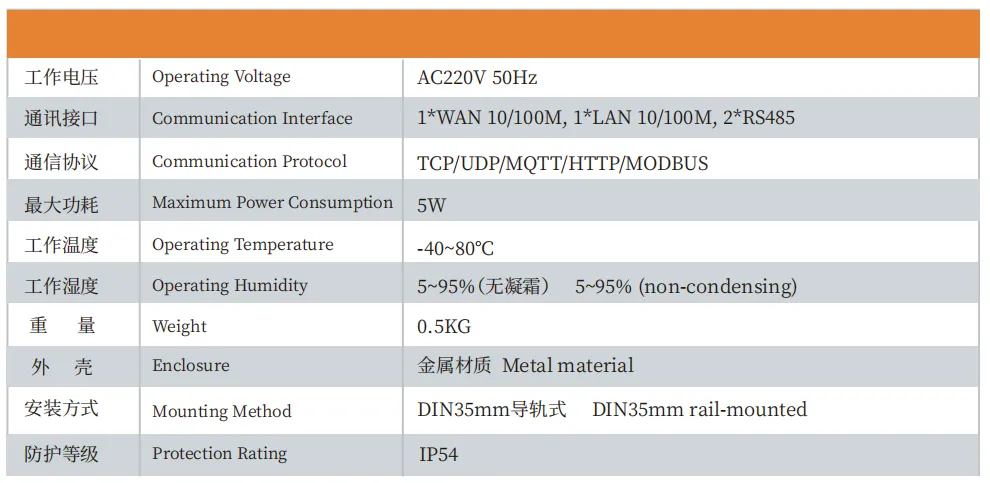

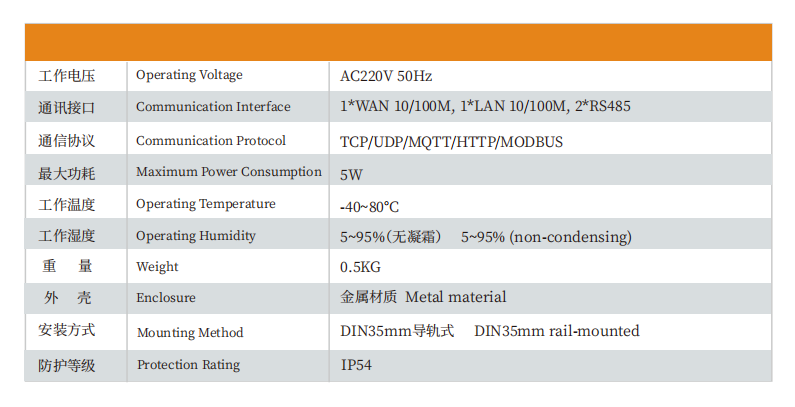

硬件参数
Hardware Parameters
