MS-FK-600C
机箱式分控器
Chassis-Type Sub-Controller
产品概述
Product Overview
该产品是一款1U机架式分控，双网口设计2寸TFT屏幕五方向按键操控更加灵活。8个卡农式端口输出通常用舞台灯具，每个端口对应域数量及域号都可更改，速率250K。通过网络配置软件或节点服务器可对灯具地址及参数进行更改。可对灯具RDM进行管理。可通过网络OTA升级。
This is a1U rack-mount sub-controller equipped with dual Ethernet ports, a 2-inch TFT display and five-direction keys for convenient operation. It features8 XLR output ports for stage lighting, with configurable domain number and ID per port at fixed 250K baud rate. Lamp address and parameters can be modified via configuration software or node server. It supports RDM management and remote OTA upgrade over network.

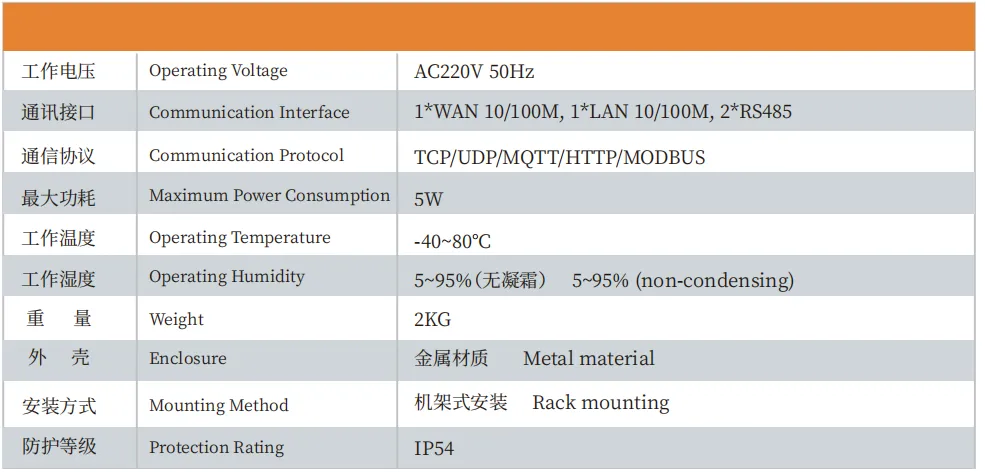

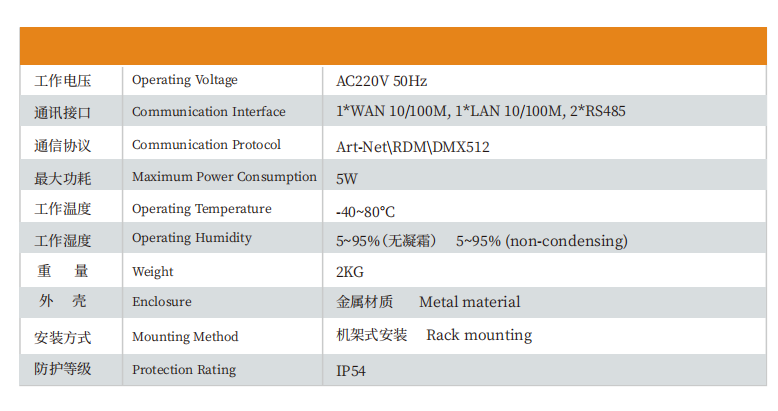

硬件参数
Hardware Parameters
